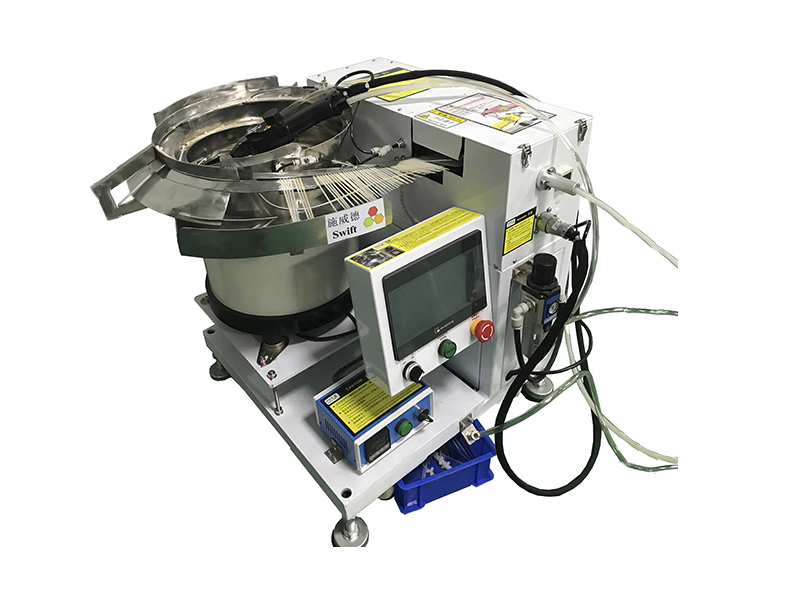

Automatic cable tie machine is the key to improve production efficiency.
Automatic cable tie machine is widely used in appliance factories, motor coil industry and copper tubes etc. It uses an automatic PLC touch screen control circuit and has good work stability. It is simple and convenient to operate.
One automatic cable tie gun can replace 2 or 3 workers, even more. The automatic cable tie system is the key to improve production efficiency so it plays an important role in the production process.
Why we say that?
Less than 1 second to finish the bundle!
The automatic cable tie machine completes cable tie tying within one second, including the actions of wrapping,pulling and tightening, and cutting off. However, hand-bundling takes at least 5 seconds even more.
High degree of automation, good continuity of movement and easy to operate!
No binding cable ties by hand. Reducing hand damage and human fatigue .Improving work efficiency.
And automatic cable tie tool system is with a PLC and text control circuit which has good working stability. The parameter values of setting and operation can be displayed directly on the touch screen. It is clear and intuitive.
Save 2 or 3 labor cost and much time!
Just put the wound material at the jaws of cable tie gun. Once you pull/tread the trigger/pedal, the cable tie gun automatically makes cable ties locking the material. This automatic cable tie tool can save 2 or 3 workers, and significantly improves the work efficiency and solves the problem of labor difficulties.
Be applied to full-automation line!
Based on the good work stability and others, our cable tie guns can be used on full-automation line. By the way, we have several engineers who has more 20 years experiences on full automation line, they devote to develop the cable tie guns and the relative industry.
Different kinds of automatic cable tie guns for your choices!
Pls check models below.
Handheld cable tie gun bundling bulk cable ties, wire harness
| Model | SWT25080H | SWT25100H | SWT25110H | SWT25120H | SWT25130H | SWT25150H |
| Cable tie spe./mm | 2.5*80 | 2.5*100 | 2.5*110 | 2.5*120 | 2.5*130 | 2.5*150 |
| Bundle dia./mm | 2-14 | 2-17 | 2-20 | 2-22 | 2-23 | 2-32 |
| Bundle speed/s | 0.7 | 0.7 | 0.7 | 0.8 | 0.8 | 0.9 |
| Model | SWT36100H | SWT36120H | SWT36140H | SWT36150H | SWT36200H |
| Cable tie spe./mm | 3.6*100 | 3.6*120 | 3.6*140 | 3.6*150 | 3.6*200 |
| Bundle dia./mm | 2-18 | 2-23 | 2-27 | 2-31 | 2-43 |
| Bundle speed/s | 0.8 | 0.9 | 1 | 1.2 | 1.3 |
Pls check the video
Fixed cable tie gun bundling bulk cable ties, food bags,chemical bags etc
| Model | SWT25080F | SWT25100F | SWT25110F | SWT25120F | SWT25130F | SWT25150F |
| Cable tie spe./mm | 2.5*80 | 2.5*100 | 2.5*110 | 2.5*120 | 2.5*130 | 2.5*150 |
| Bundle dia./mm | 2-14 | 2-18 | 2-20 | 2-22 | 2-25 | 2-31 |
| Bundle speed/s | 0.7 | 0.8 | 0.8 | 0.9 | 0.9 | 1 |
| Model | SWT36100F | SWT36120F | SWT36150F | SWT36200F |
| Cable tie spe./mm | 3.6*100 | 3.6*120 | 3.6*150 | 3.6*200 |
| Bundle dia./mm | 2-18 | 2-22 | 2-31 | 2-42 |
| Bundle speed/s | 0.9 | 1 | 1.2 | 1.3 |
Pls check the video
Handheld cable tie gun bundling reel cable ties
| Model | SWT25100HC | SWT36150HC | SWT36200HC | SWT36300HC |
| Cable tie spe./mm | 2.5*100 | 3.6*150 | 3.6*202 | 3.6*300 |
| Bundle dia./mm | 3-18 | 3-31 | 2-20 two cycle
20-42 one cycle |
2-40,two or three cycle
40-70 one cycle |
| Bundle speed/s | 1 | 1.2 | 1.3 | 1.5 |
Fixed cable tie gun bundling reel cable ties
| Model | SWT25100FC | SWT36150FC | SWT36200FC | SWT36300FC |
| Cable tie spe./mm | 2.5*100 | 3.6*150 | 3.6*202 | 3.6*300 |
| Bundle dia./mm | 3-18 | 3-31 | 2-20 two cycle
20-42 one cycle |
2-40,two or three cycle
40-70 one cycle |
| Bundle speed/s | 1.1 | 1.2 | 1.3 | 1.5 |
Bag strapping machine
Scope of application: Suitable for bag strapping, especially suitable for fully automatic bag strapping with a robot, gas explosion-proof, liquid explosion-proof, and anti-corrosion versions are available.
- Electric motor explosion-proof-split machine
| Model | Max bundle dia./mm | Cable tie spe./mm |
| SWT25100FCD | 15 | C25100 |
| SWT36150FCD | 29 | C36150 |
| SWT40150FCD | 29 | C40150 |
| SWT36200FCD | 43 | C36200 |
| SWT40200FCD | 43 | C40200 |
| SWT36300FCD | 63 | C36300 |
2.Electric Motor Version All-in-One Machine & Non-explosion-proof
| Model | Max bundle dia./mm | Cable tie spe./mm |
| SWT36150FB | 29 | C36150 |
| SWT36200FB | 43 | C36200 |
| SWT36300FB | 63 | C36300 |
3 Fully pneumatic explosion-proof integrated machine
| Model | Max bundle dia./mm | Cable tie spe./mm |
| SWT36150FBQ | 29 | C36150 |
| SWT36200FBQ | 43 | C36200 |
| SWT36300FBQ | 63 | C36300 |
Automatic clip cable tie machine for automobile
There are automatic loosen clip cable tie guns and automatic reel clip cable tie guns.
In a word, we are the professional manufacturer of automatic cable tie machines. If you have requirements, pls free to contact us at once.
