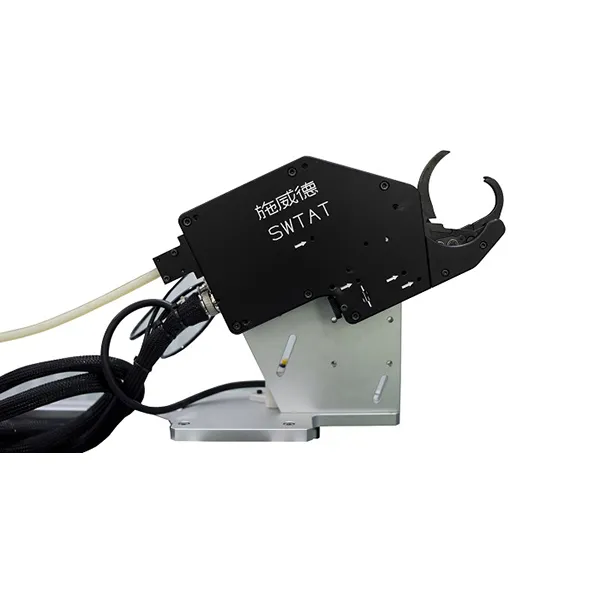

0.7S Fast Bundle Automatic Cable Tie Tool with Fixed Zip Tie Gun
Automatic cable tie tool SWT25080F can bundle wire harness sheath up to 14mm dia.. And this cable tie tool is a fixed zip tie gun. It can be set in the working-table.
- Using bulk cable ties, cable tie size 2.5*80mm, model T25080.
- The cable tie gun can bundle 3-14mm diameter wire harness sheath.
- Treat the foot pedal, automatically winding, tightening, cutting off cable ties and collecting the waste into a box.
- It takes 0.7seconds to wrap, tighten and cut off zip ties.
- Tighten forces are adjustable.
- AC220V 50/60HZ or AC110 50.60Hz available
Products Categories
Get A Free Quote
Cable tie gun electric description
0.7S fast bundle automatic cable tie tool with fixed zip tie gun is called SWT25080F. The cable tie gun uses smaller zip ties 2.5*80mm to bundle wire cables sheath. Some wire harness factories would use this kind of auto cable tie machines to reduce bundle time and improve the work efficiency. And the cable tie machine can only bundle the max diameter 14mm for wires, and 13mm for soft tubes or simirar objects.
Electric cable tie gun technical sheet
| Product Name | Electric cable tie machine |
| Size of cable ties | W2.5 * L80mm(loose) |
| Operation speed | 0.7S |
| Max banding Dia. for wire | Ø14mm |
| Max banding Dia. for tube/sheath | Ø13mm |
| Min banding dia. | Ø3mm |
| Host machine power | AC220V 50/60Hz; AC110V 50/60Hz; |
| Cable tie gun power | DC48V |
| Pneumatic pressure | 5kg/c㎡ |
| Host machine size | L690* W670*H670mm, |
| Cable tie gun size | L276 * W240*H149mm |
Get Free Quote of 0.7S Fast Bundle Automatic Cable Tie Tool with Fixed Zip Tie Gun
Automatic cable tie tool applications
This cable tie gun are applied in home appliance factories, such as wire harness sheath, PCB wire cable, water soft tubes.

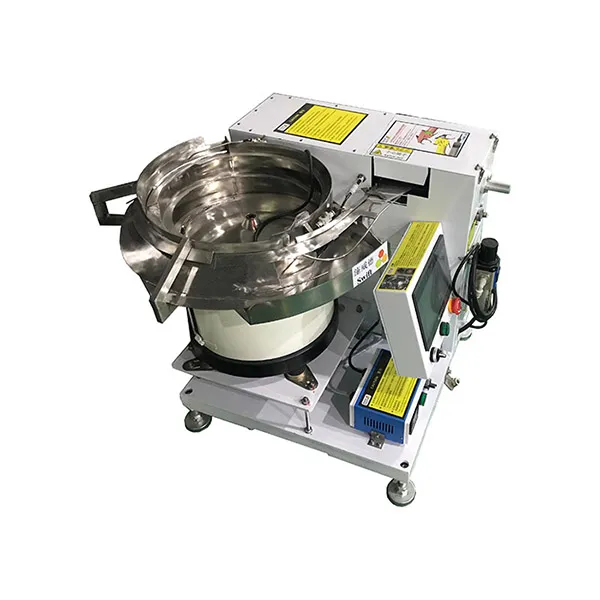

Automatic cable tie machine with fixed zip tie gun Video
Detail Display
