100mm Cable Ties Bundle 1S Automatic Cable Tie System with Handheld Zip Tie Gun Tool Wiring Management

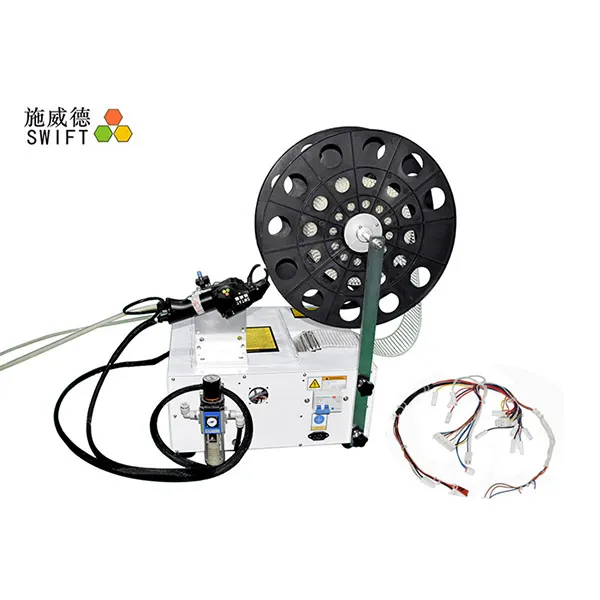

Automatic cable tie system SWT25100HC is a small cable tie machine with reel cable ties and usally applied in wire harness industry or home appliance.
- Using reel nylon cable ties called C25100. Cable tie size 2.5*100mm.
- These cable ties have been managed in a feeding device and there are 5000pcss in the device. Once it runs out, just replace another new one reel.

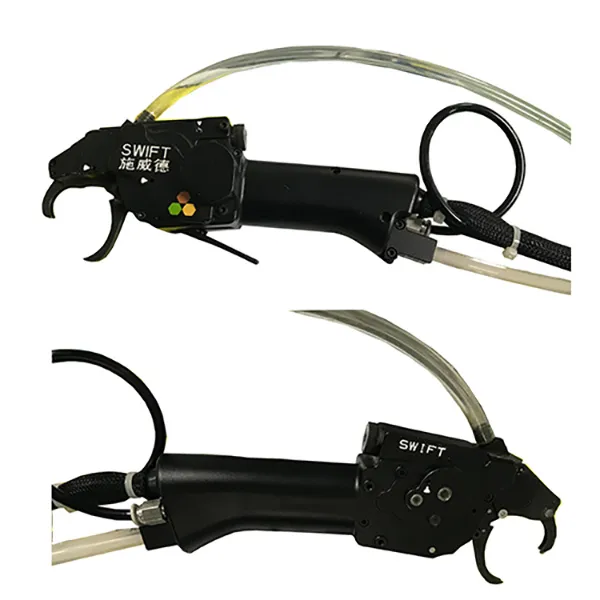

- There is a cable tie gun tool that can bundle reel cable ties C25100. The max bundle diameter is 18mm.
- It takes 1 seconds to wrap, tighten and cut off zip ties.
- Tighten forces are adjustable.
- Without a feeding vibration, the cable tie machine looks small and noise is lower.
- SWT25100HC can be applied to full automation line. Many clients choose this small cable tie gun machine to work with a robot arm.
Automatic nylon cable tie machine description
100mm cable ties bundle 1S automatic cable tie system is called SWT25100HC with handheld zip tie gun tool to apply to wiring management. Its most function is to bundle reel cable ties automatically, avoiding that operators manually bundle,tighten and cut zip ties off one by one. What’s more,our company gives it more functions. Such as if there is any cable tie jammed in the cable tie gun tool or in the hose, the machine would stop running and automatically clean the jammed cable tie, and then restart automatically.
SWT25100HC automatic cable tie machine are usally used in wire harness management, metal wires bundle or other similar products.
It improves the bundle speed, operators just pull the trigger then cable ties would be bundled and cut off. It saves 3-4 workers’ cost.
Our company is manufacturer and has strong R&D capabilities. If you have doubts or need in automatic cable tie machines, pls contact us.
Automatic cable tying machine technical sheet
| Product Name | Automatic cable tie system |
| Size of cable ties | W2.5 * L100mm(reel) |
| The feeding device | 5000pcs cable ties in a reel |
| Operation speed | 1S |
| Max banding Dia. for wire | Ø18mm |
| Min banding dia. | Ø3mm |
| Host machine power | AC220V 50/60Hz |
| Cable tie gun power | DC24V |
| Pneumatic pressure | 5kg/c㎡ |
| Power | 1000W |
| Host machine size | L710* W540*H740mm(including the feeding device) |
| Cable tie gun size | L250 * W102 * H64mm |
Get Free Quote of 100mm Cable Ties Bundle 1S Automatic Cable Tie System with Handheld Zip Tie Gun Tool Wiring Management
Automatic cable tie gun tool applications
- Be applied to wire harness management to improve the bundle speed and save time.
- Be applied to metal wires management.
Automatic cable tie system machine with cable tie gun tool video
Detail Display
