4 Cable Ties Fast Bundle Automatic Cable Tie Machine with Handheld Tie Gun
Automatic cable tie machine can bundle wire harness with nylon cable ties fast. It can replace 3-4 workers and improve the work efficiency.
- Using bulk cable ties, one size of nylon zip ties. Cable tie size 2.5*100mm, model T25100

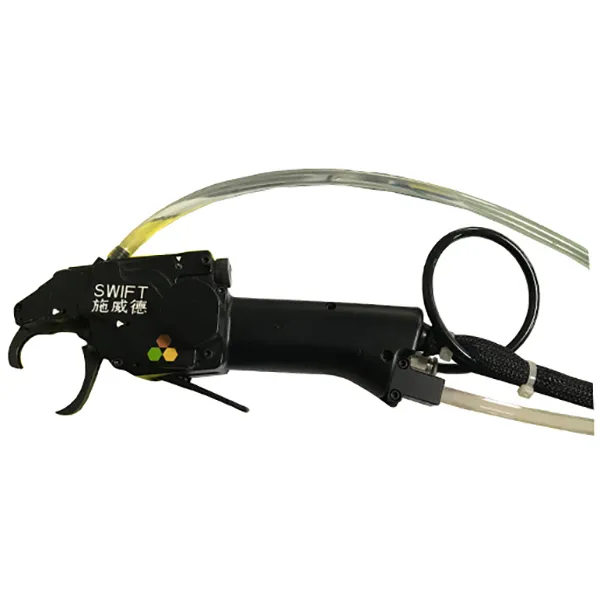

- The cable tie gun can bundle 2-17mm diameter wire harness.
- Pulling the trigger of cable tie gun, automatically winding, tightening, cutting off cable ties and collecting the waste into a box.
- It takes 0.7seconds to wrap, tighten and cut off zip ties.
- Tighten forces are adjustable.
- The cable tie gun can be fixed in the desktop too if clients want.
Automatic Cable Tie Machine Description

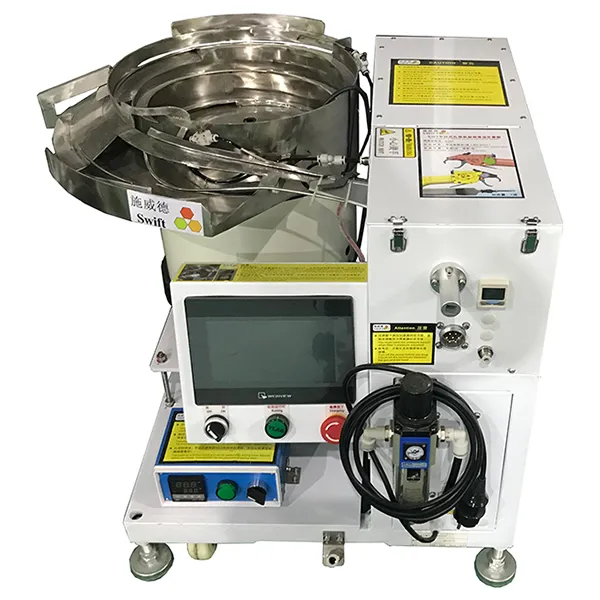

Automatic cable tie machine, SWT25100H has a handheld cable tie gun and can deal with 4inch cable ties, 100mm length to bundle diameter up to 17mm wire harness.This cable tie machine is used in wire harness industry often. Most wire harness or cable factroies like this cable tie gun. It is easy to hold and move easily. Operator can bundle wire harness in any places in the moving board. Because cable ties waste can be collected into a box, the factories can keep clean. And because the bundle speed is faster than by hand, cable tie gun can replace 3-4 workers, even more.
Automatic Cable Tie Installation Machine Technical Sheet
| Product Name | Automatic cable tie machine |
| Size of cable ties | W2.5 * L100mm(loose) |
| Operation speed | 0.7S |
| Max banding Dia. for wire | Ø17mm |
| Min banding dia. | Ø2mm |
| Host machine power | AC220V 50/60Hz |
| Cable tie gun power | DC24V |
| Pneumatic pressure | 5kg/c㎡ |
| Host machine size | L690* W670*H670mm, |
| Cable tie gun size | L245 * W95*H64mm |
Get Free Quote of 4 Cable Ties Fast Bundle Automatic Cable Tie Machine with Handheld Tie Gun
Automatic Cable Tie Tool Applications
This cable tie gun are applied in wire harness factories who manage many wire cables in the moving boards, inner wire cables of home appliance etc.
Automatic Cable Tie Machine with Handheld Cable Tie Tool Video
