Bind Dia. Max 20mm Automatic Cable Tie Cutter Gun Machine with Al Braket Height Adjustable
Automatic cable tie cutter gun can bundle max dia. 20mm for copper coils in home appliance or bags by using nylon cable ties T361120. Operator could hold the metal coils with two hands, at the same time, treat the foot pedal to react the fixed cable tie gun to bundle, tighten and cut off nylon zip ties.
- Using bulk cable ties called T36120 produced by SWIFT factory.
- The electric cable tie gun fixed can bundle 3-22mm diameter wire harness or 3-20mm soft tubes.
- Easy to use automatic cable tie machine.
- It takes 1seconds to wrap, tighten and cut off zip ties.And the SWIFT cable tie tool can work continuously and consistently.
- Tighten forces are adjustable and its max force is 8kg.
- Keep about 200-300pcs nylon zip ties in the vibration bowl.Or the cable tie installation machine would stop working because of running out of nylon wrap ties.
- Two hands can hold the wire hareness or copper coils because the cable tie machine can be actived by treating the foot petal.
Automatic cable tyinng machine system description

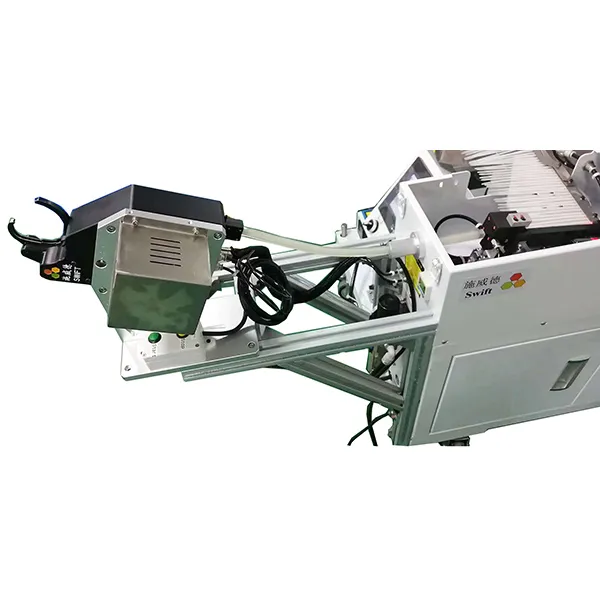

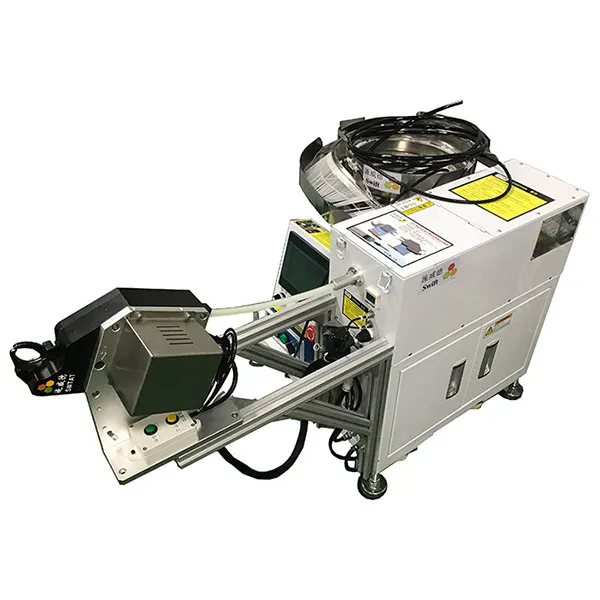

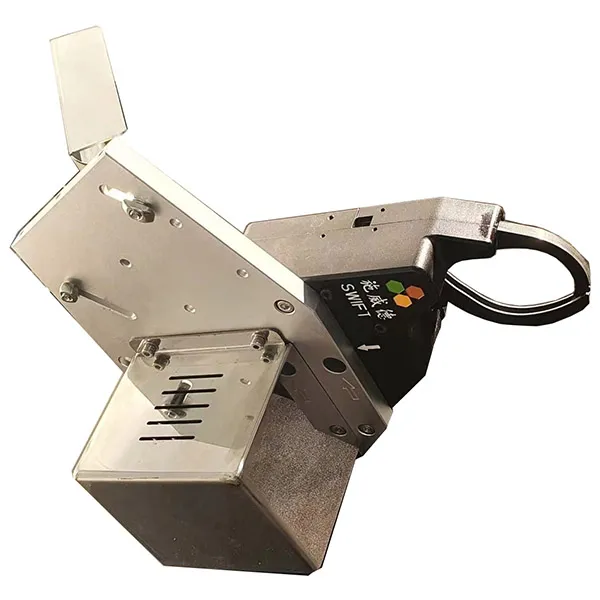

Bind Dia. Max 20mm Automatic cable tie cutter gun machine with Al braket Height adjustable is called SWT36120F. This kind of automatic cable tie machine is with a zip tie gun fixed in the Al bracket. The height of the bracket can be adjustable. Operator can adjust the binding forces by turning on the snob in the cable tie gun. White appliance facotories would use this kind of cable tie machines to bundle copper coils or metal coils. Some food industry, chemical industry would use cable tie gun fixed to bundle bags.
automatic nylon cable tie machine technical sheet
| Product Name | Automatic cable tie cutter machine |
| Function | 1.Automatically bundling nylon cable ties. 2.Improve the bundle speed and save time. 3.Not making nylon cable ties. |
| Size of cable ties | W3.6 * L120mm(loose) |
| Operation speed | 1S |
| Max banding Dia. for wire | Ø22mm |
| Max banding Dia. for tubes | Ø20mm |
| Min banding dia. | Ø3mm |
| Host machine power | AC220V 50/60Hz; AC110V 50/60Hz |
| Cable tie gun power | DC48V |
| Pneumatic pressure | 5kg/c㎡ |
| Host machine size | L725* W710*H670mm |
| Cable tie gun size | L284 * W240*H149mm |
Get Free Quote of Bind Dia. Max 20mm Automatic Cable Tie Cutter Gun Machine with Al Braket Height Adjustable
Automatic cable tie machine applications
- Be used in white appliance to bundle metal coils.
- Be used in food facoties, chemical factories to bundle plaxtic bags.
Automatic cable tie gun video
Detail Display
