Max 70mm Bundle Wiring Automatic Cable Tie Tool with Reel Cable Tie 300mm Length
Automatic cable tie gun SWT36300HC can bundle wires up to 70mm or other soft tubes up to 63mm.
- Using reel nylon cable ties called C36300. Cable tie size 3.6*300mm.

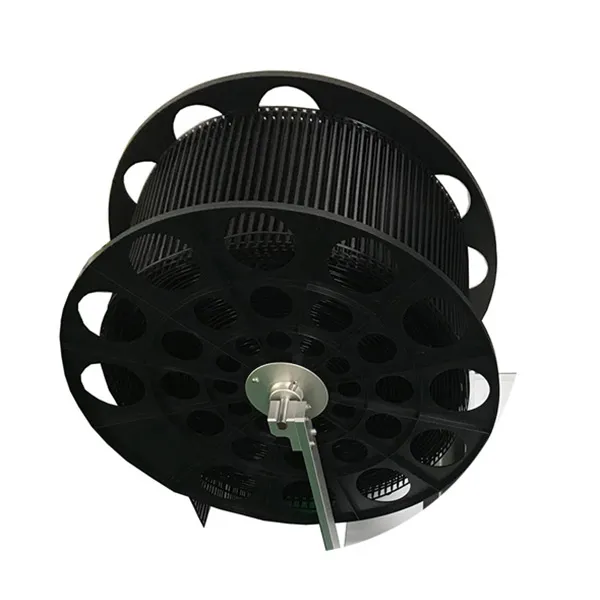

- There are 2500pcs C36300 in the feeding device. Once it runs out, just replace another new one reel.
- The max bundle diameter is 70mm for wire harness management and 63mm for soft tubes or similar objects.
- It takes 1.5 seconds to wrap, tighten and cut off zip ties.
- Tighten forces are adjustable.
- Without a feeding vibration, the cable tie machine looks small and noise is lower.
- Pulling the trigger in the handheld zip tie gun, nylon cable tie would be wrapped, tightened and cut off.
Products Categories
Get A Free Quote
cable tie cutter gun description

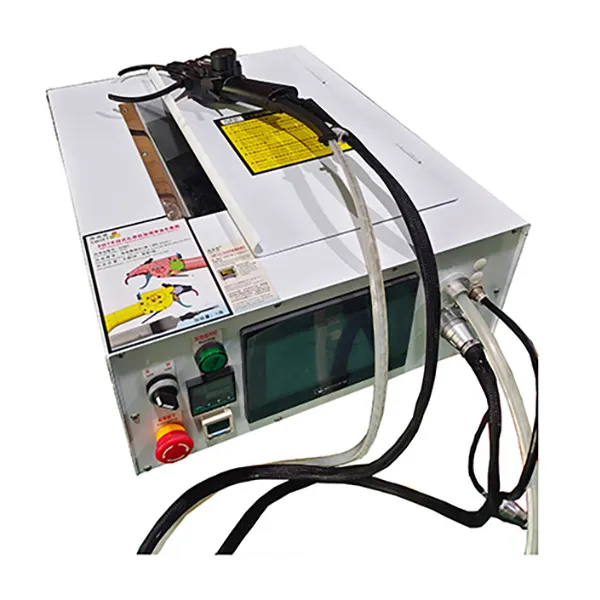

Max 70mm bundle Wiring automatic cable tie tool with reel cable tie 300mm length is called SWT36300HC. It is with a handheld zip tie gun without a vibration bowl.
Automatic cable tie tool gun technical sheet
| Product Name | Automatic cable tie tool system |
| Size of cable ties | W3.6 * L300mm(reel) |
| The feeding device | 2500pcs cable ties in a reel |
| Operation speed | 1.5S |
| Max banding Dia. for wire | Ø70mm |
| Min banding dia. | Ø2-40mm,2 or 3cycles Ø40-70mm,1 cycle |
| Host machine power | AC220V 50/60Hz |
| Cable tie gun power | DC24V |
| Pneumatic pressure | 5kg/c㎡ |
| Power | 1000W |
| Host machine size | L710* W540*H740mm(including the feeding device) |
| Host machhine weight | 30kg |
| Cable tie gun size | L310 * W103 * H74mm |
| Cable tie gun weight | 0.95kg |
Get Free Quote of Max 70mm Bundle Wiring Automatic Cable Tie Tool with Reel Cable Tie 300mm Length
Auto cable tie gun applications
Be used in binding big coiled metal sheath.
Automatic cable tie tool system with 70mm wirings bundle Video
Detail Display
